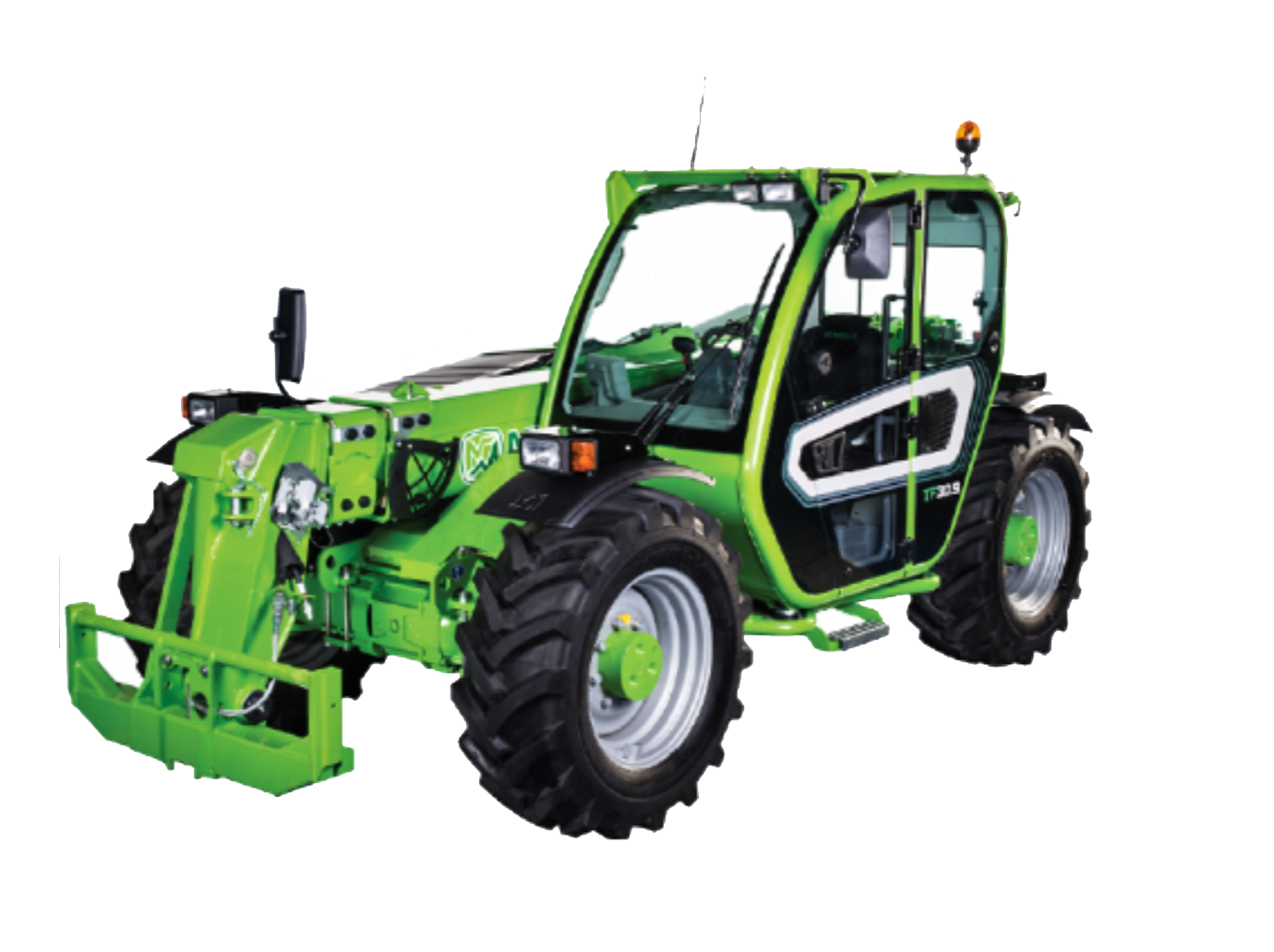

The TF 30.9 offers a great package for farms seeking extra lift height whilst maintaining compactness. With a width of 2.1 metres and the option of a lowered cab height (2020 mm) the machine will access smaller spaces.
The TF30.9 has a maximum capacity of 3.0 tonne and a height of 8.6 metres. With a width of 2.1 metres and the option of a lowered cab height (2020mm) the machine will access smaller spaces without compromising driver comfort due to the cab remaining the same size as the other models. Merlo is the only manufacturer of telescopic handlers offering a compact solution with a lift height of almost 9 meters.
The TF30.9 115 is equipped with the Deutz 115hp engine in conjunction with the 40km/h Eco Power Drive (EPD) hydrostatic transmission that automatically control and adjust the engine revolutions based on operating conditions. As a result, the engine speed is disconnected from the accelerator pedal. This technology achieves a reduction in fuel consumption of 18%.
The 115 model is equipped with the EPD TOP version which offers “Speed Control” mode: the system memorises the machine’s movement speed and keeps it constant, ideal for yard handling operations; it also includes the engine speed management function directly from the joystick.
The 115 model includes a Reversible Fan, Pick up Hitch, Trailer Braking and Tractor Type Approval ideal for towing trailers for all Agricultural requirements
Operating Weight : 6,650 kg
Maximum Lift Capacity : 3.0
Maximum Lift Height : 8,600 mm
Maximum Reach : 5,700 mm
Maximum Speed : 40 km/h
Ground Clearance : 380 mm
Drive : 4x4 2 Speed EcoPowerDrive
Length : 4,335 mm
Wheelbase : 2,740 mm
Width : 2,100 mm
Height : 2,180 mm
EDP Top 'Speed Control' for constant speed
Max travel speed - 40 km/h
Lift Height 9 metres
Optional low cab height
Auto revving joystick
Max capacity 3.0 tonne
Engine: Deutz Tier 4 final 85KW /115HP 3.6 litres
Transmission: Hydrostatic EPD (Eco Power Drive)
Hydraulic system: Gear 98L /min 210 bar
Hydraulic valve block: open centre
Overload system: Auto Block
Air-con: optional
